scription

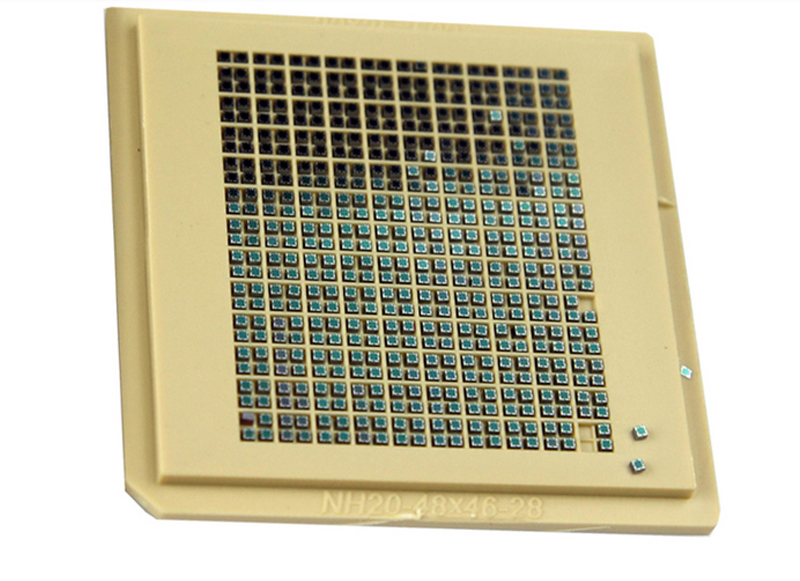

The series of pressure sensor is a small size piezo-resistive pressure sensor. The Die size is 1x1mm2. When the input voltage is 3VDC the sensor produces mV DC output voltage which is direct proportion of the input pressure. Pressure sensor is the absolute pressure sensor, and we can also offer the differencial pressure mode.
Features
l Solid, MEMS technique, high reliability
l Low cost, tiny size

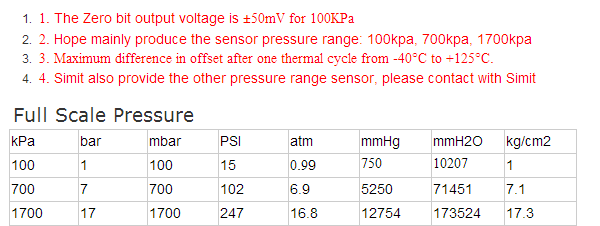

l Standard pressure range: 0-100KPa;0-150KPa;0-700KPa;0-1700KPa
l Nonlinearity: < 0.20%FSO
l Silicon/silicon bonding wafer, high stability
Application
l For high resolution absolute sensor systems
l Engine control
l Tyre pressure test
l Barometers, Altimeters, Variometers, Sphygmomanometer
